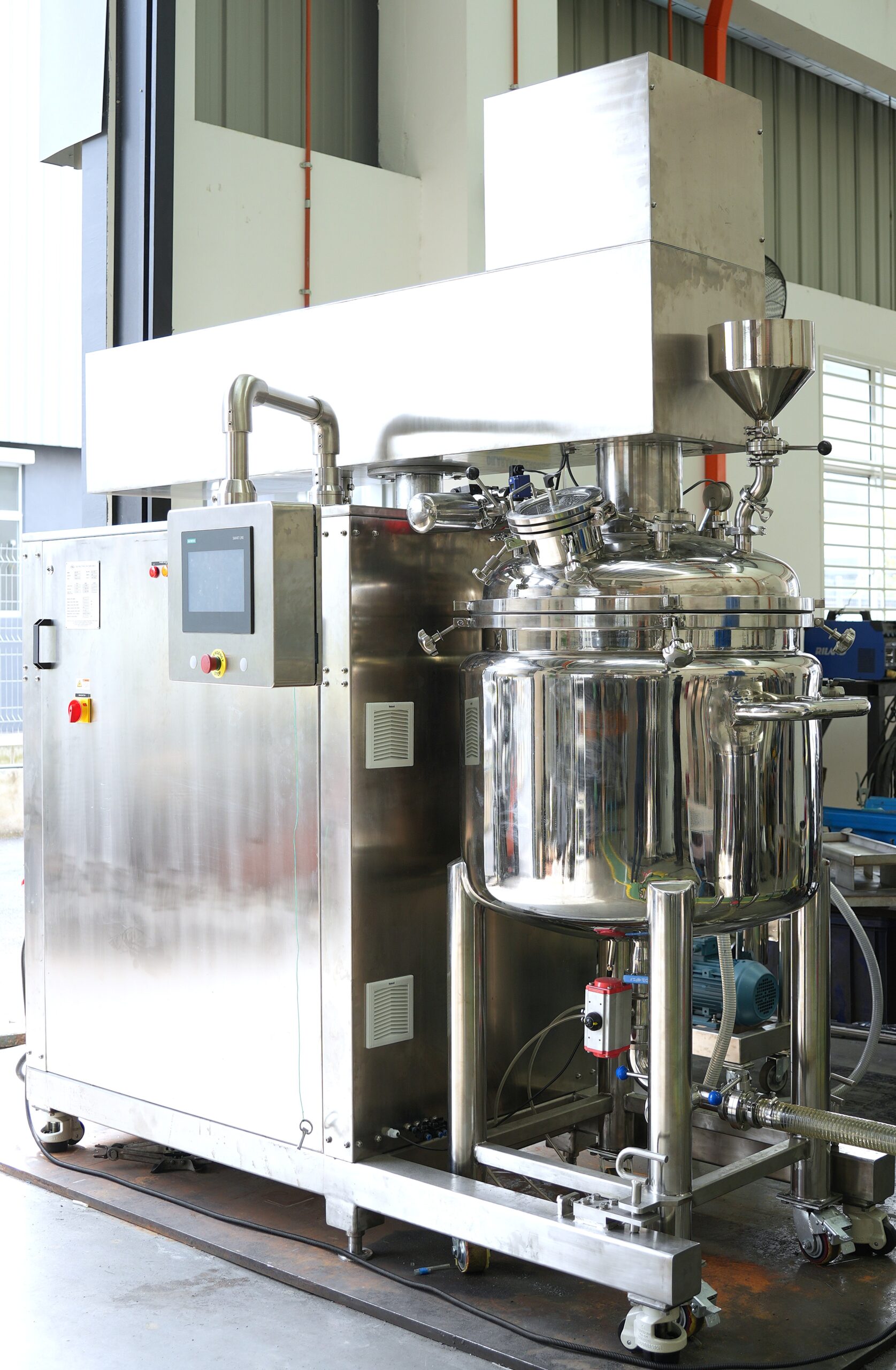

Multimix Vacuum Homogenizer Mixer – DSM High Shear Mixer with pneumatic lifting
Multimix Vacuum Homogenizer with patented “V”designed rotor/stator workheadMultimix Vacuum Homogenizer Mixer – DSM High Shear Mixer with pneumatic liftingMultimix Emulsifier Mixer for 35Litres capacityMultimix DSM Vacuum Mixing Tank with Anchor Mixer and High Shear Mixer (Homogenizer)

Vacuum Homogenizer | Emulsifier Mixer – DSM High Shear Mixer

Multimix® DSM Vacuum Emulsifier Mixer is especially suitable for high shear mixing under vacuum condition for applications such as mayonnaise, cream or gel.

Multimix DSM Vacuum Mixer Brochure

Videos:

Multimix Vacuum Emulsifier Mixer

Vacuum Emulsifier Mixer Commissioning at Customer Site

KEY BENEFITS

  • Elimination of air bubbles, lumps or agglomerates problem with vacuum mixing
  • No dust pollution by transferring powder via vacuum
  • Minimal wastage since powder is sucked completely by vacuum
  • GMP and sanitary compliant design

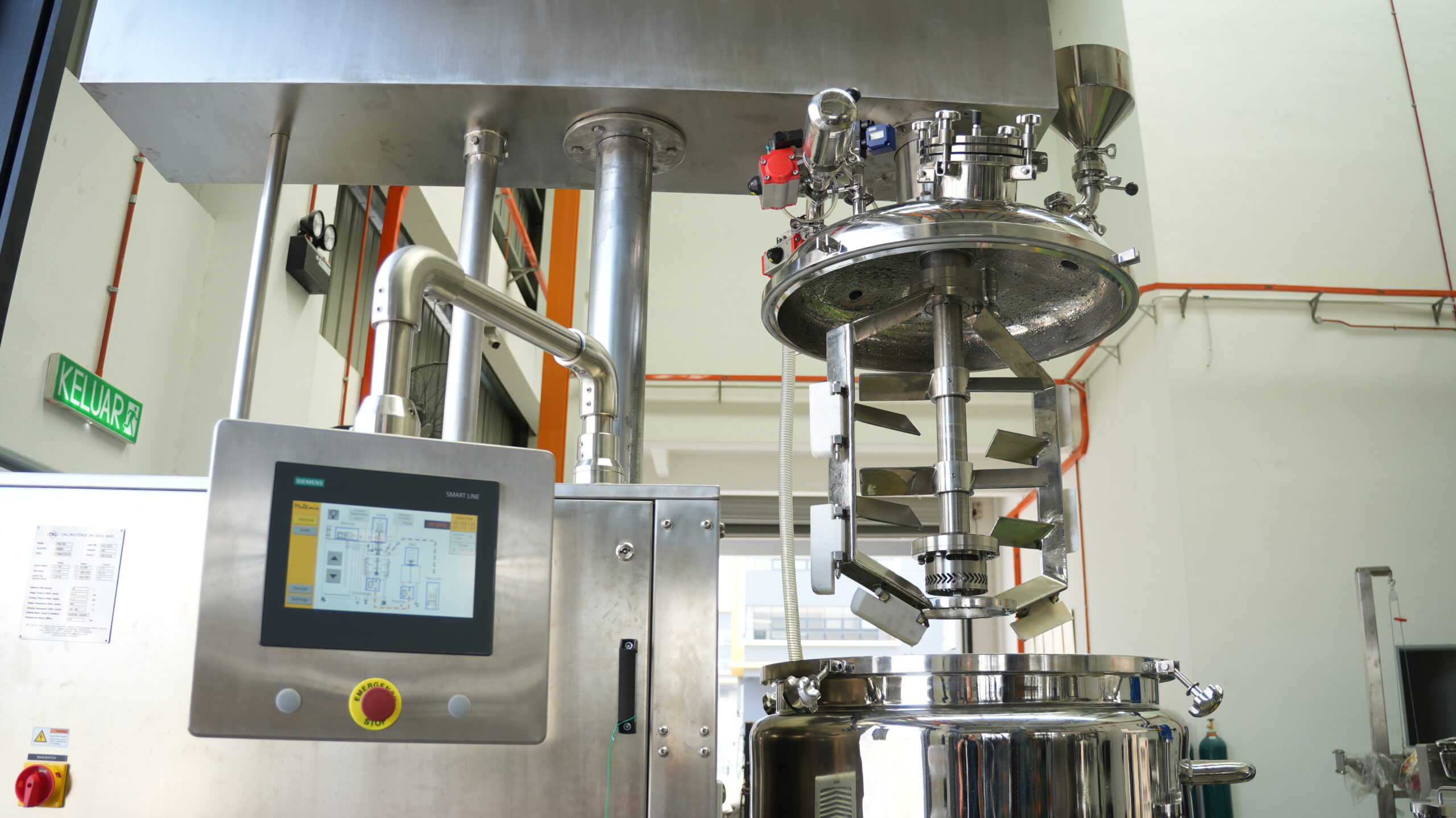

  • Effortless lifting and lowering with pneumatic/hydraulic
  • No separation of oil and water phases afterwards
  • Outstanding stability and homogeneity

Vacuum Homogenizer | Emulsifier Mixer – DSM High Shear Mixer Specifications

Power supply Three phase, 380V/415V, 50/60Hz
Digital Inverter Sensor less Vector Control
Speed Electronic variable speed inverter (0-3000rpm)
Material SS316 wetted parts
Impellers Anchor Mixer with Teflon scrapers and Rotor/Stator with patented “V” design



Vessel, Lifting and Vacuum Specifications

Vessel Single / Double (jacketed) for heating/cooling
Lifting system Pneumatic / Hydraulic
Insulation material  Mineral wool
Heating medium Hot water / Steam / Thermal Oil
Vacuum pressure -600mmHg (0.8bars)
Machine/Vessel  base Static with forklift channels /  Mobile with castor wheels



Optional

Explosion proof motor EEX D ll T4
Remote control station for ex-proof motor
Safety limit switch
Special seals, valves, pipings and fittings
Stainless steel mobile jacketed tank
CIP/SIP cleaning system
Touch screen/PLC panel control



HOW  DSM HIGH SHEAR MIXER (EMULSIFIER MIXER) WORKS?

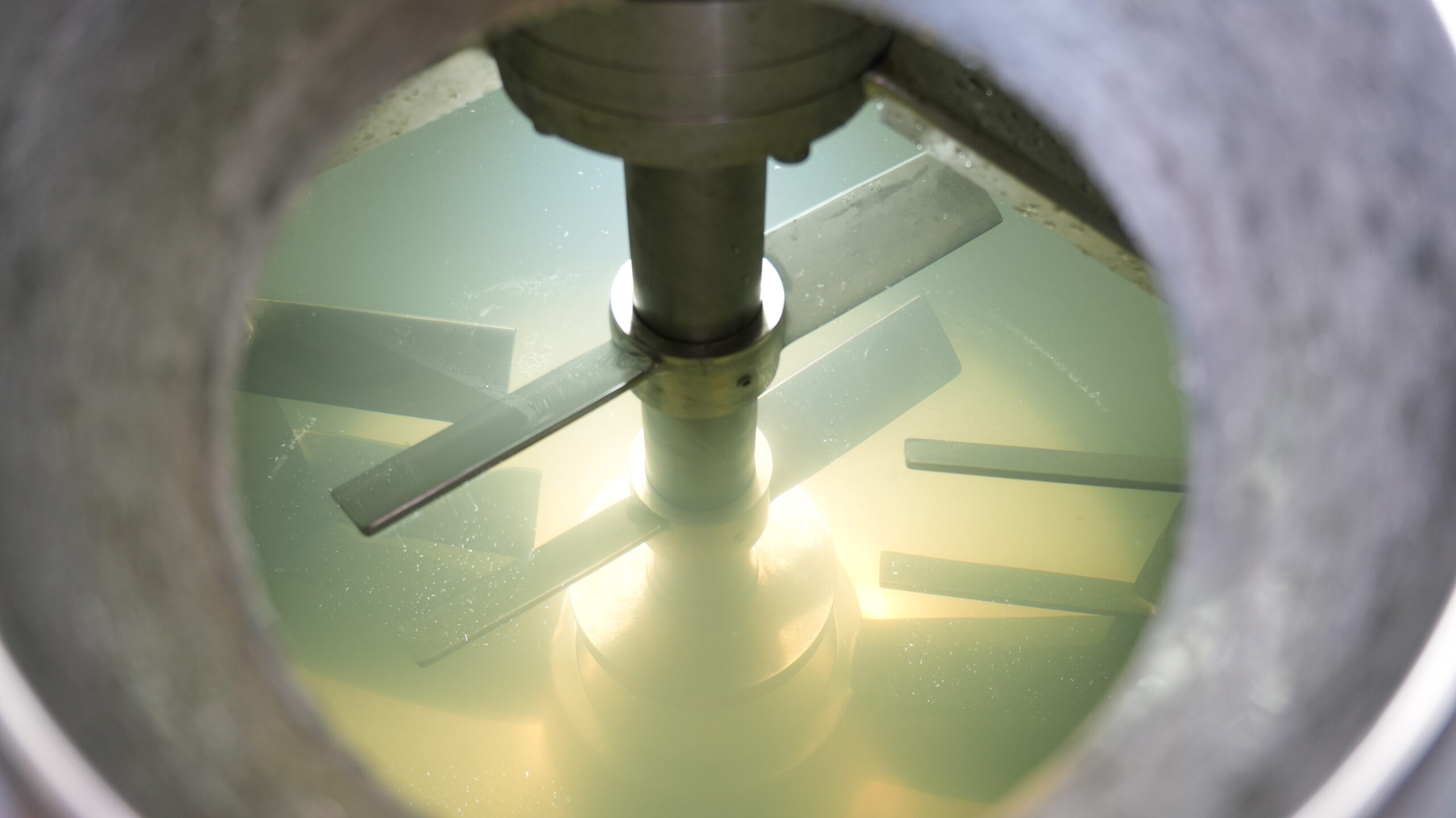

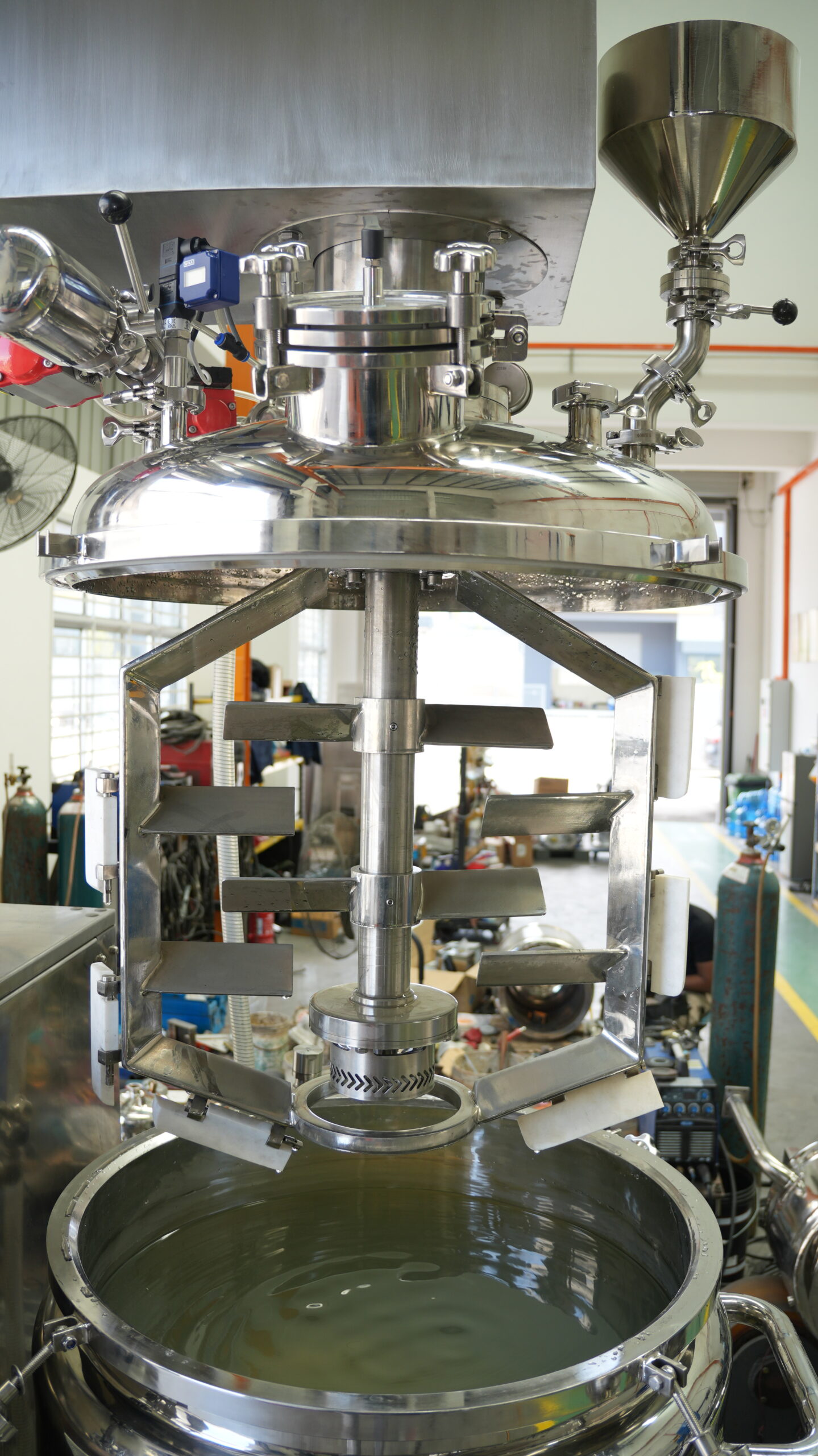

The anchor mixer is equipped with Teflon scrapers in order to remove materials from inner side of vessel and at the same time pushes the mixture back into the center where high shear mixing/homogenization/emulsification process takes place which is useful for production of fine emulsions/dispersions in microns level.

Counter-rotating impellers at opposite direction also promote a more uniform mix resulting in unparalleled homogenous product.

Suitable for many applications across industries as:

  • Mayonnaise
  • Gel
  • Cream
  • Carbopol /Carbomer /Gum dispersions
