Multimix Laboratory Vacuum Mixer – VM2108
Multimix Laboratory Vacuum Mixer – VM2108

Multimix Laboratory Vacuum Mixer – VM2108

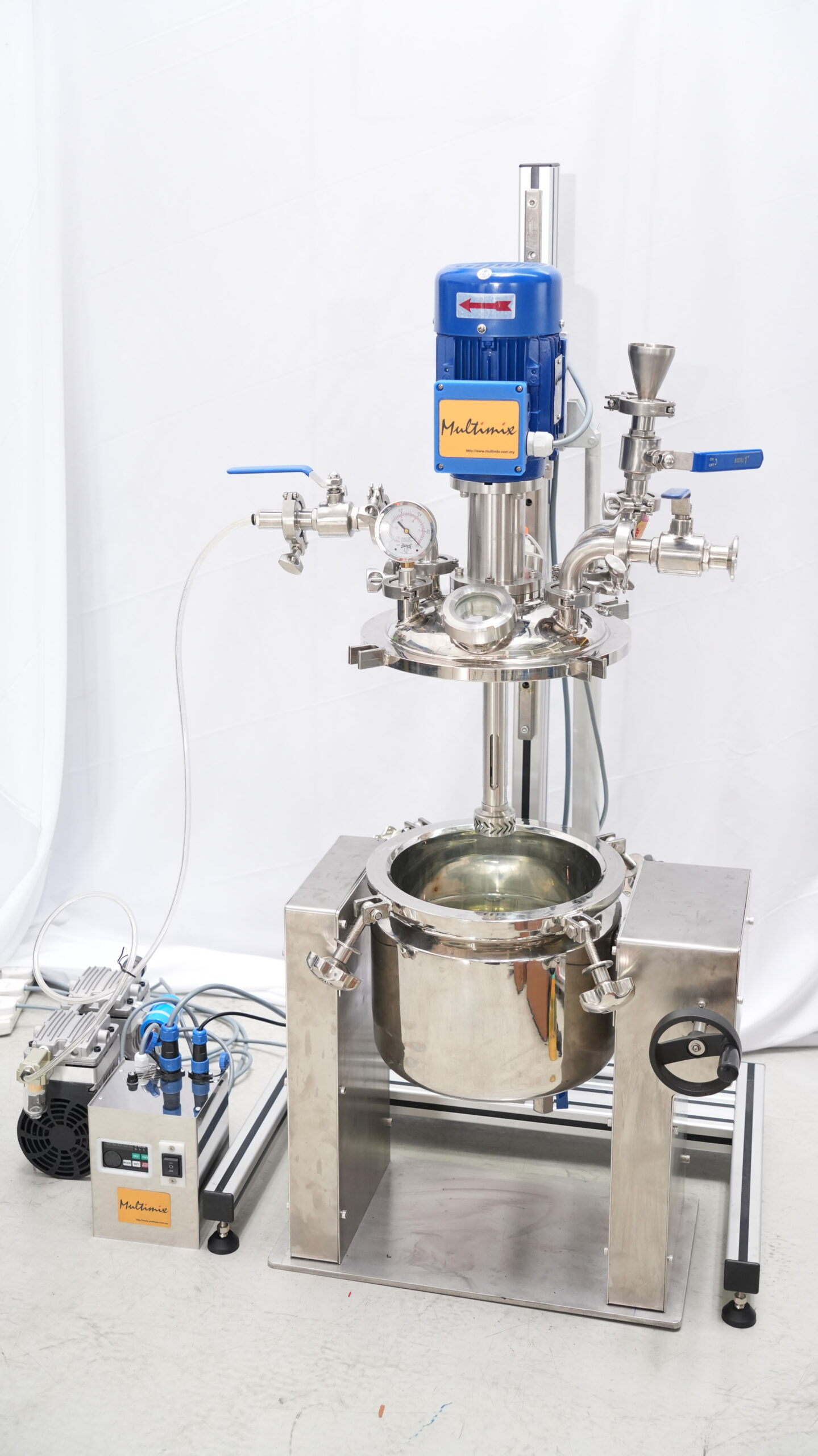

Experience the revolutionary Multimix® high shear vacuum mixer – VM 2108 specially designed for vacuum emulsion or dispersion processes.

Its patented “V-type” rotor/stator design (available in single and double vortex design) enables significant reduction of mixing times up to 90 percent compared to conventional ones, saving precious resources and accounts for higher production efficiency.

Multimix Laboratory Vacuum Mixer – VM2108 Brochure

KEY BENEFITS

  • Elimination of air bubbles, lumps or agglomerates problem
  • No dust pollution by transferring powder via vacuum
  • Minimal wastage since powder is sucked completely by vacuum
  • Fast and hassle-free exchange of high shear mixing workhead to disperser blade
  • Flexible mixing capacity from 0.5 -10 Litres using same mixer
  • Cost savings in terms of process efficiency, electricity and manpower
  • Ease of use with electrical lifting for mixer workhead



Laboratory Vacuum Mixer – VM2108  Specification

Motor 1HP Compact AC Motor in Aluminum Housing
Power Supply Single phase, 110V/220V, 50/60Hz
Mixing Impeller
  • Disperser Blade : 43mm, 63mm, 83mm
  • Single Vortex Rotor/Stator: 45mm
  • Double Vortex Rotor/Stator: 65mm
Speed Electronic variable speed inverter 0-6000 rpm
Material SS 316L wetted parts
Mixing Capacity 0.5, 1, 5 or 10 liter (H20)
Machine Base Corrosion resistant aluminium base with height-adjustable non-slip rubber feet
Included

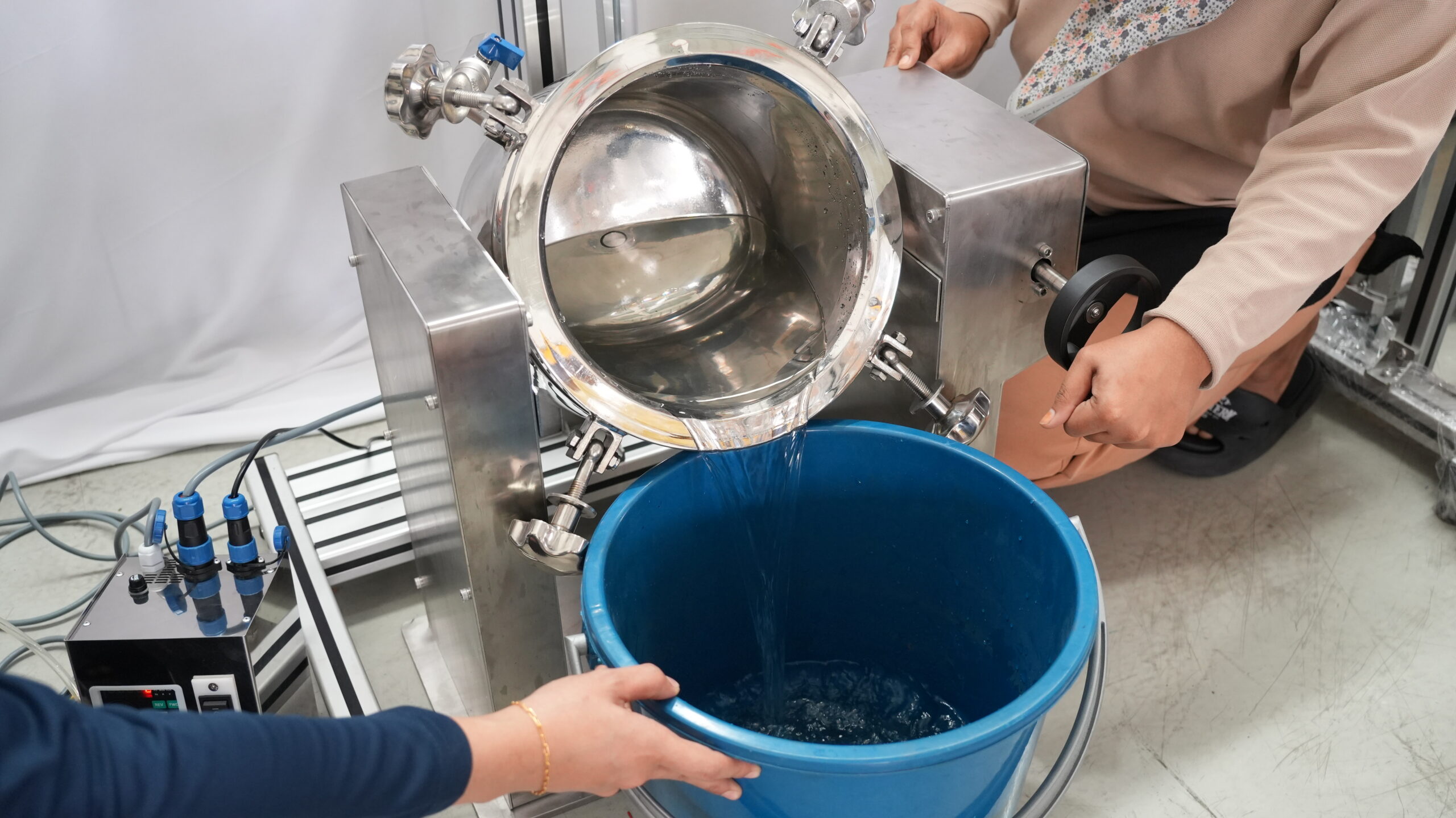

  • Vacuum vessel with sight glass, hopper, discharge valve
  • Panel control with frequency inverter

Multimix Laboratory Vacuum Mixer Features
