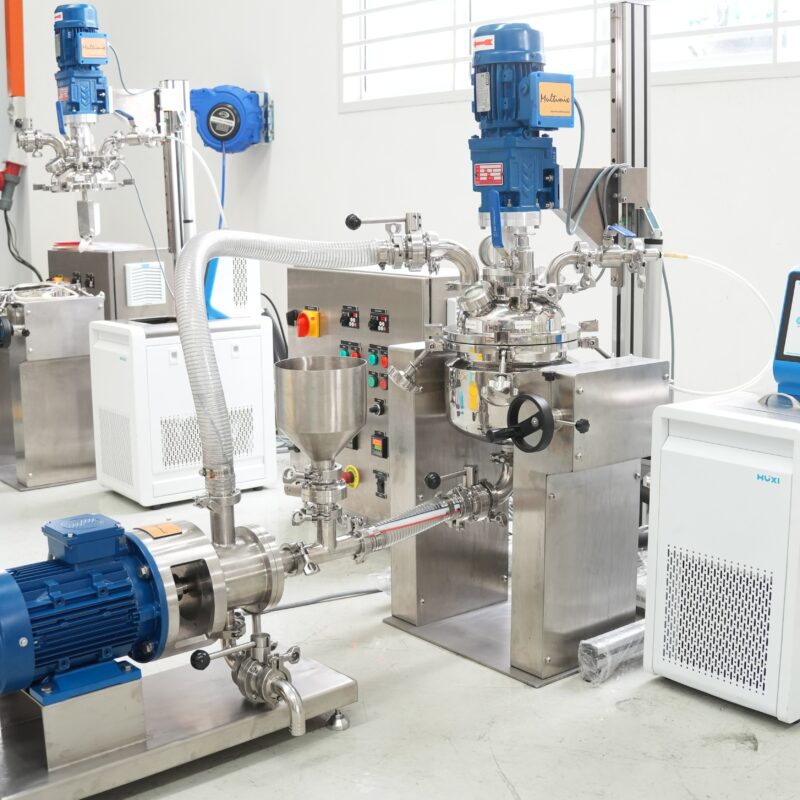

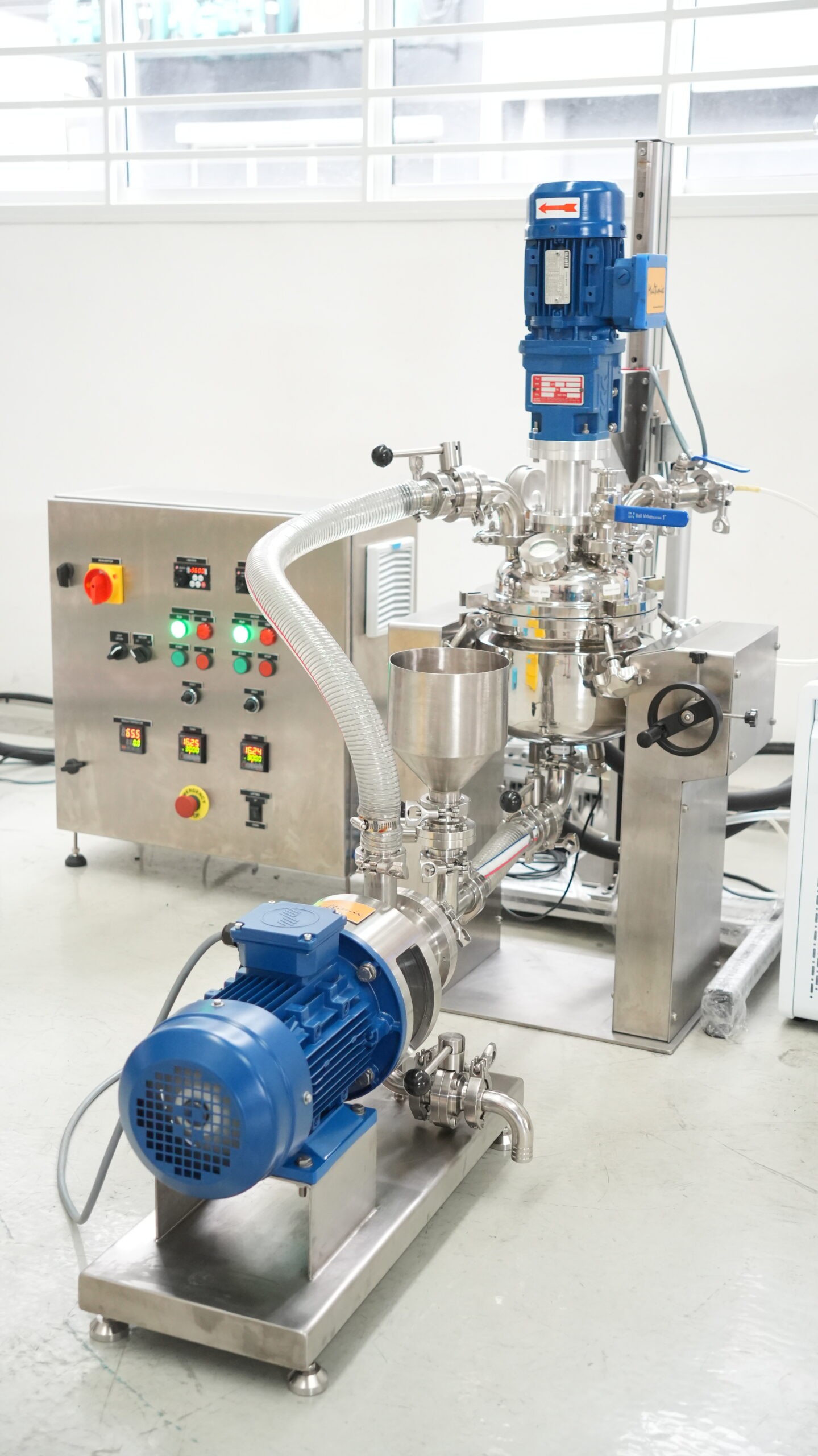

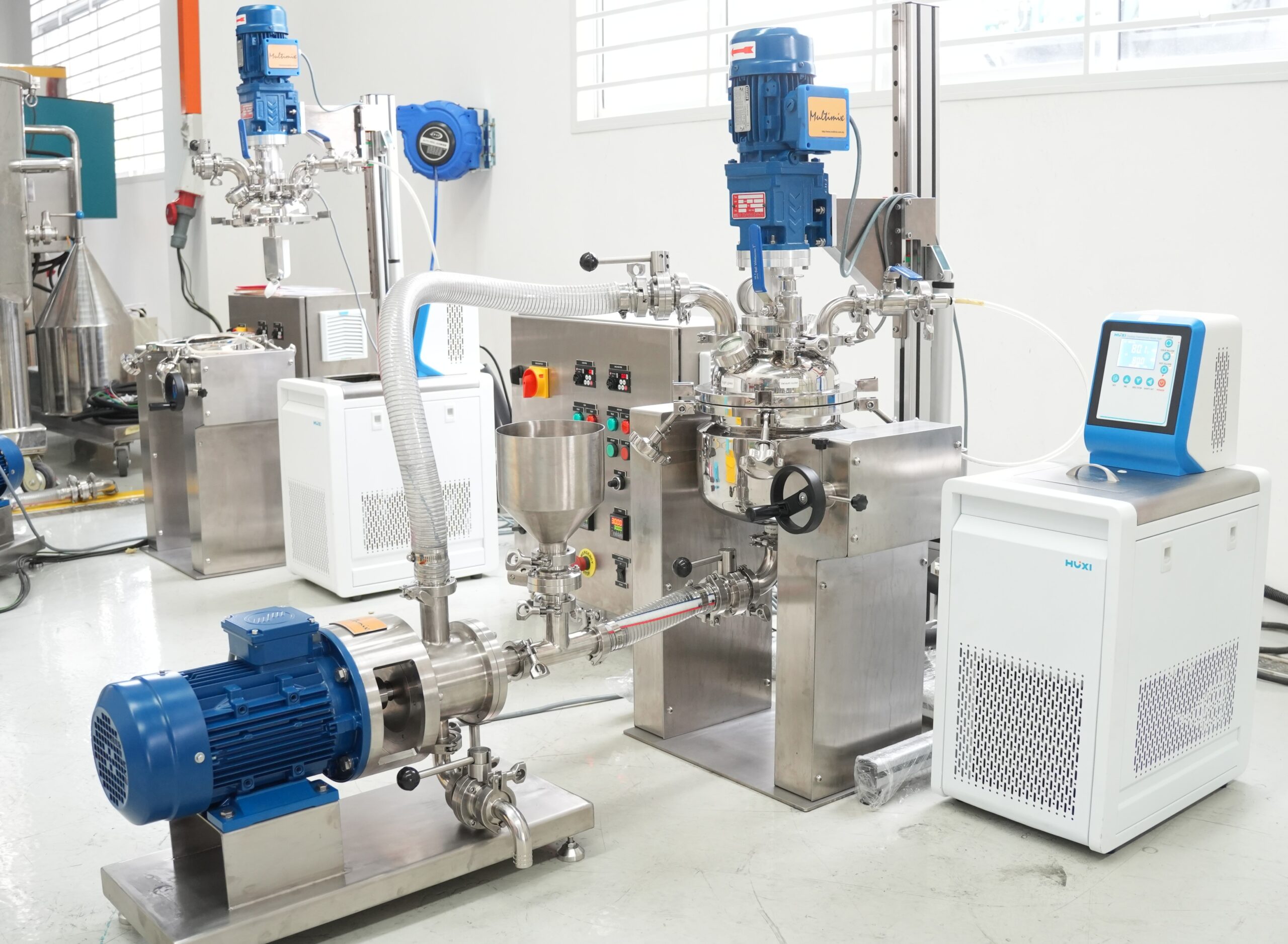

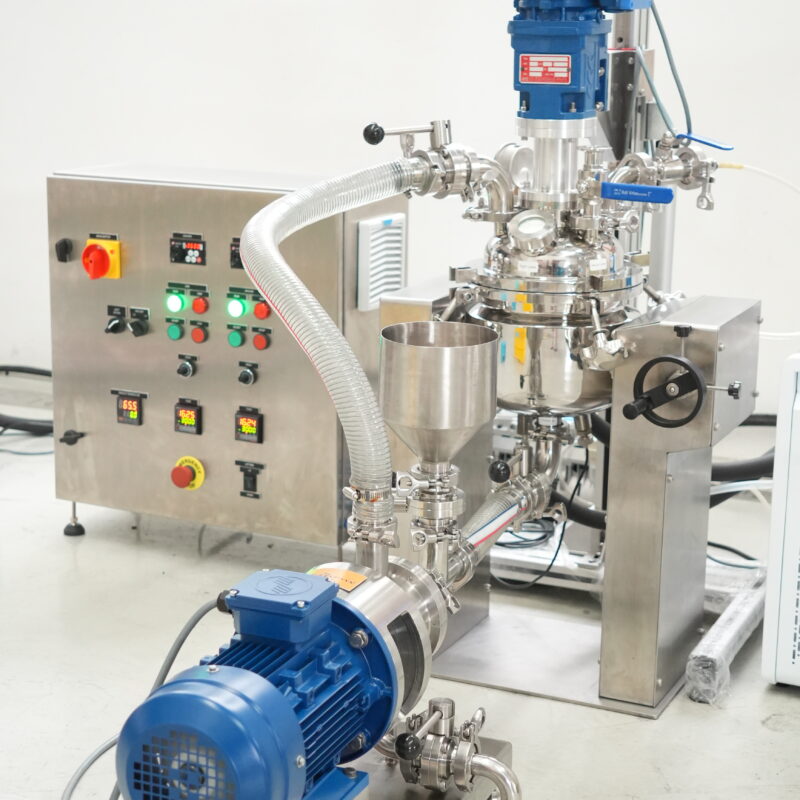

Multimix Lab Inline High Shear Mixer
Lab Inline High Shear Mixer with Panel ControlSlotted stator and rotor 2 stages for IHSM403Rotor stator of inline high shear mixer 403Multimix Lab Inline High Shear Mixer

Lab Inline High Shear Mixer (IHSM) 403

Multimix® Lab Inline High Shear Mixer,  a versatile, multipurpose, and compact high shear mixer designed for the production of fine emulsion and dispersion. The machine is designed for our customers who already own a production scale inline high shear mixer and to fulfil their needs to experiment with smaller amount of raw materials or to finetune the ratio with less wastage before upscaling to full production.

Hence they can always achieve repeatable results from lab to full scale production.

It comes with a stainless steel hopper for ease of inserting the mixing materials. This unit is GMP compliant.

Multimix Lab IHSM 403 Brochure

How to disperse Carbopol using Inline High Shear Mixer

Specification

Power 3HP Compact AC Motor in Aluminum Housing
Drive Single phase, 110V/220V, 50/60Hz
Digital Inverter Sensor less Vector Control
Speed Electronic variable speed inverter 0-3000 rpm
Material SS 316L wetted parts
Rotor/stator 2 stage
Mixing Capacity 1-3 liter (H2O) hopper
Included – Base support & fitting
– Panel control with frequency inverter
Optional Explosion proof model



WHY INLINE HIGH SHEAR MIXER ?

More often than not when it comes to industrial mixers, a bulky static mixing tank is often seen in production area. Not to mention the fact that space IS becoming a scarcity and precious resource for factories, an efficient, mobile and compact mixing powerhouse is what customers are truly looking for.



 HOW IT WORKS ?

At the core of each IHSM lies a precision engineered “slotted” stator, designed in double stage up to a maximum four stages. Coupled with the vortex generated by the rotor inside, such design allows maximum shearing of particles as they are sucked and pushed through the sharp edges of the slots.



HIGH SHEAR MIXING APPLICATIONS

  • Gum dispersion such as Carbopol or Carbomel as thickener
  • Sauces and ketchups
  • Cough syrup mixture
