Multimix Inline High Shear Mixer 425
Inline HSM 425 with 4 stages rotor

Multimix Inline High Shear Mixer | Powder Liquid Mixer – IHSM425

Multimix® Inline High Shear Mixer,  a versatile, multipurpose, mobile and compact high shear mixer designed for the production of fine emulsion and dispersion.

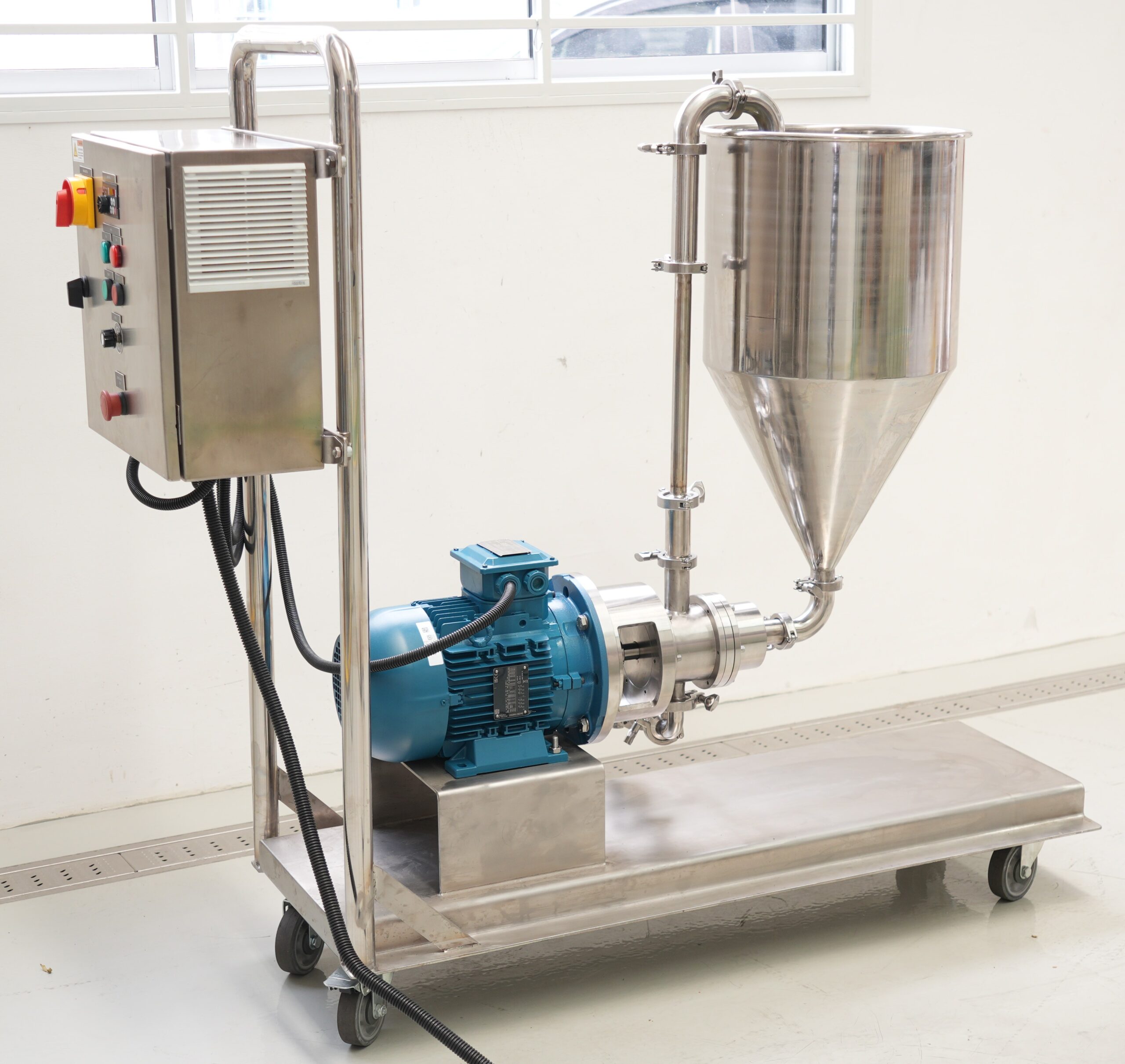

The machine is delivered with a mobile stainless steel trolley which makes transportation a breeze and also a stainless steel hopper for ease of inserting the mixing materials. This unit is GMP compliant and capable of flow rates reaching up to 60,000 litres per hour.

Multimix Inline High Shear Mixer brochure

KEY BENEFITS

  • Fine emulsion (less than 1 micron particle size)
  • Fine dispersion without “fish-eye”
  • Compact and high mobility
  • Reduction of batch processing time
  • Outstanding stability and homogeneity
  • Flexible capacity ranging as small as 25 litres up to 20,000 litre in a single machine
  • Ease of powder/oil dispersion in liquid via hopper



Multimix Inline High Shear Mixer – Product Video




Product Specification

Power 25 HP Compact AC Motor in Aluminum Housing
Drive  Three phase, 380V/415V, 50/60Hz
Digital Inverter Sensor less Vector Control
Speed Electronic variable speed inverter 0-2500 rpm
Material SS 316L wetted parts
Rotor/stator  4 stage
Mixing Capacity up to 10,000L
Included – Mobile trolley
– Panel control with frequency inverter
Optional Explosion proof model, CIP discharge system, hopper, forklift channels, timer



WHY INLINE HIGH SHEAR MIXER ?

More often than not when it comes to industrial mixers, a bulky static mixing tank is often seen in production area. Not to mention the fact that space IS becoming a scarcity and precious resource for factories, an efficient, mobile and compact mixing powerhouse is what customers are truly looking for.


HOW INLINE HIGH SHEAR MIXER WORKS ?

At the core of each Inline High Shear Mixer lies a precision engineered “slotted” stator, designed in double stage, triple stage and up to a maximum four stages. Coupled with the vortex generated by the rotor inside, such design allows maximum shearing of particles as they are sucked and pushed through the sharp edges of the slots.

Powder /oil can be effectively wetted and dispersed into the liquid via the hopper (25L/50L) and recirculated through the multi stages stators until required emulsion texture is formed.


INLINE HIGH SHEAR MIXER APPLICATIONS

  • Gum dispersion such as Carbopol or Carbomel as thickener
  • Sauces and ketchups
  • Cough syrup mixture
