Multimix Batch High Shear Mixer DV (Double Vortex)

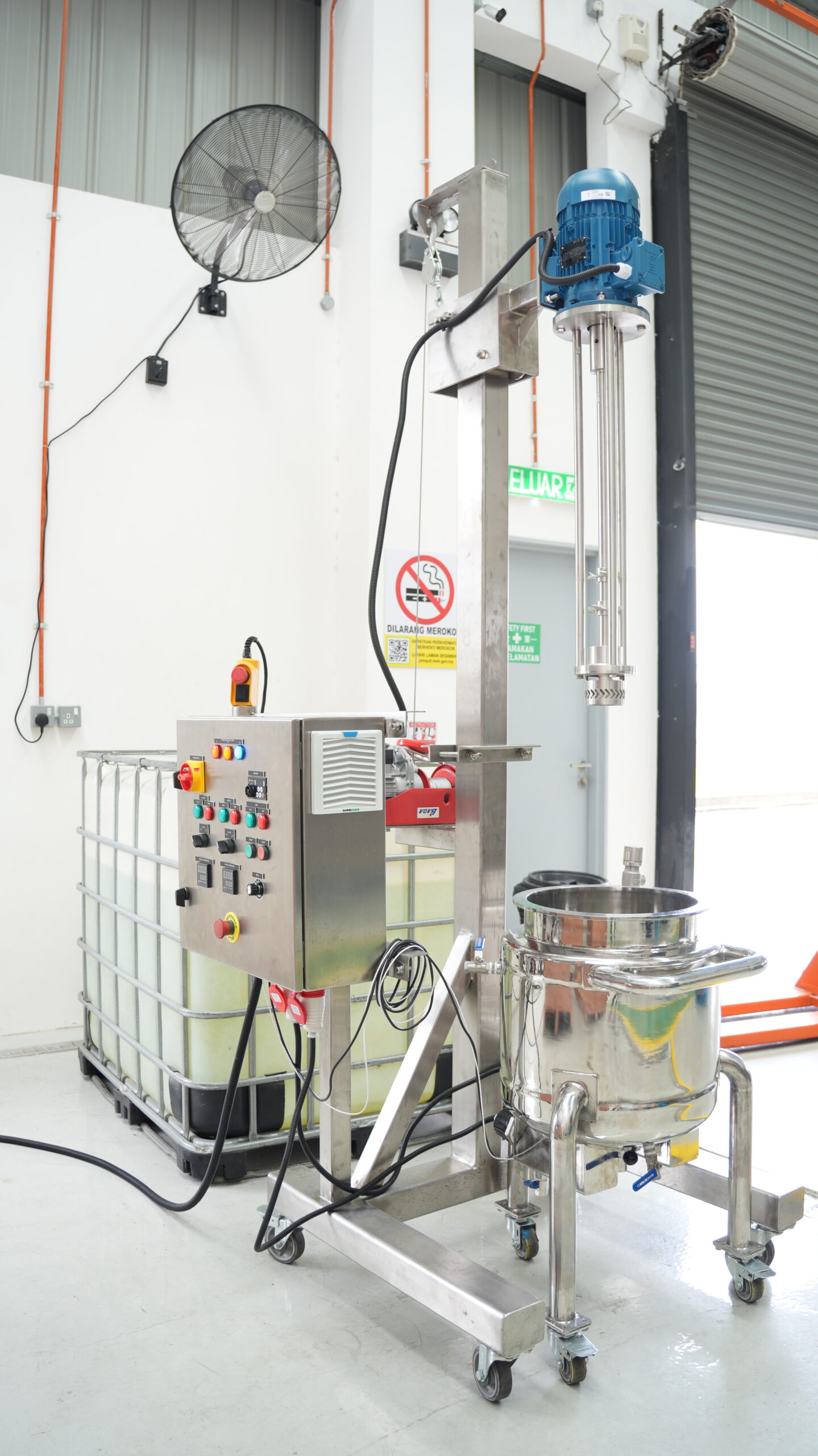

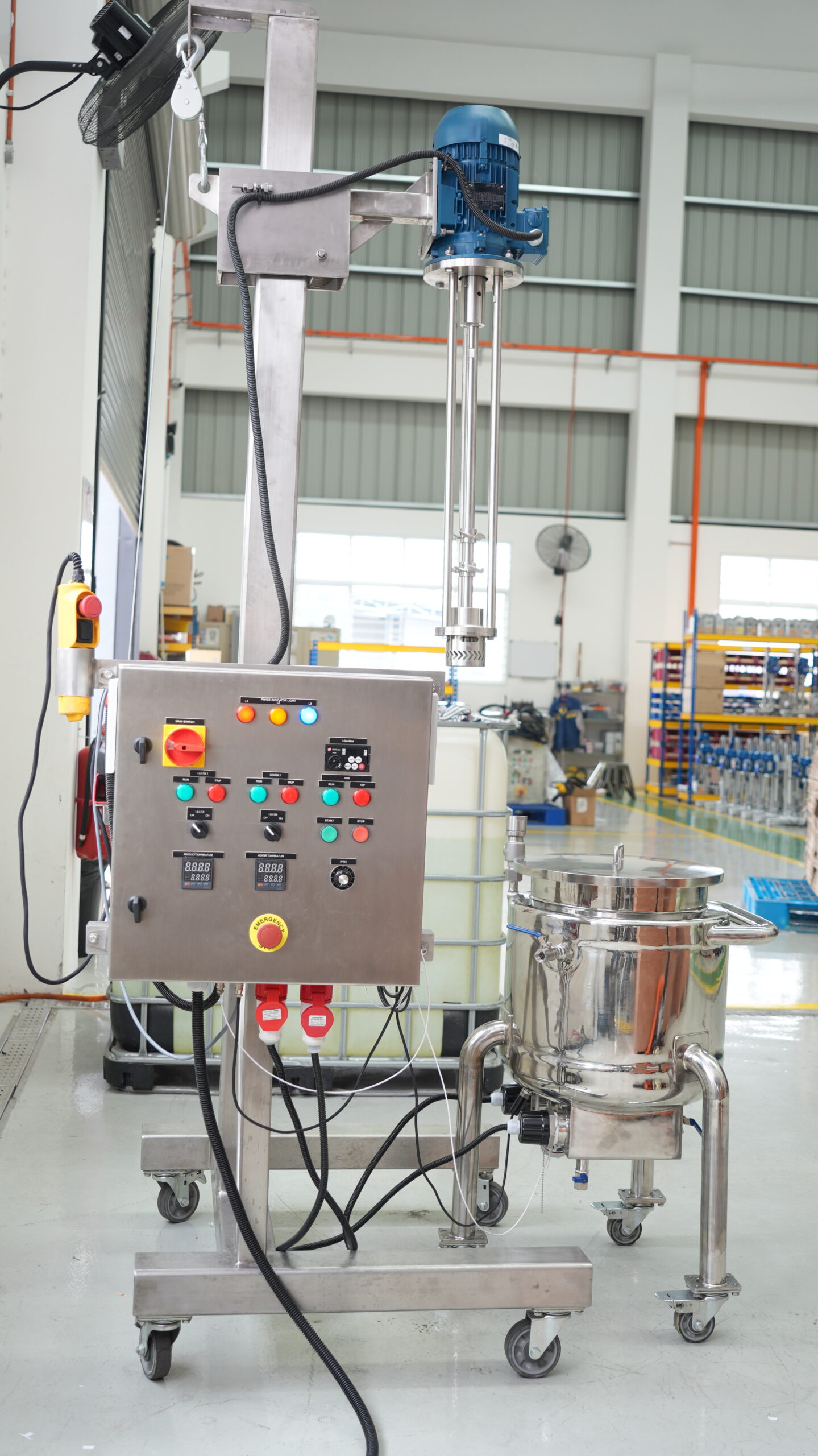

Multimix Batch High Shear Mixer with panel  control and liftingHSM-500×500

Batch High Shear Mixer – BHSM 110

Multimix Batch High Shear Mixer (BHSM) Series is specially designed for mixing application of oil and water phases in order to produce a homogenous emulsion without separation. It is also widely used for a faster and more efficient dispersion especially when  gum such as Carbopol needs to be incorporated without agglomeration problem due to “fish eye”.

At the core of each BHSM unit lies the precision engineered rotor & stator with either single or double vortex design which is key in high shear mixing for efficient emulsifying or homogenizing processes.

Multimix Batch High Shear Mixer Brochure

KEY BENEFITS

  • Flexibility and convenience of using a single mixer for multiple batches/vessels
  • Homogenous emulsion and dispersion without fish-eye and agglomerates problems
  • Motorized lifting enables usage with your existing vessel/tank height
  • Wide capacity ranging from 50 Litres up to 5000 Litres
  • Maximum shearing force with patented ‘V’ type rotor/stator design
  • Stronger and faster vortex flow with double vortex stator and surface propellers
  • Stable emulsions and suspensions
  • Interchangeable impellers with modular design allows for easy cleaning
  • Stable shearing even at high speed



Batch High Shear Mixer Portfolio

Model Power (HP) / RPM Shaft Length (mm) Capacity (H2O/liter)
BHSM 103 3/3000 750 100
BHSM 105 5/3000 850 200
BHSM 110 10/3000 1100 1000
BHSM 125 25/3000 1300 2000
BHSM 130 30/1500 1400 3000
BHSM 150 50/1000 1600 5000



Batch High Shear Mixer Specifications

Power Supply Three phase, 380V/415V, 50/60Hz
Speed Electronic variable speed inverter
Wetted Parts Material Food and medical grade stainless steel SS 316L
Mixing Impeller Patented ‘V’ type single or double vortex rotor/stator
Clearance 0.25 – 0.5mm
Bush material Teflon
Machine base Mobile with castor wheels and safety locking mechanism



Optional Features

Explosion proof motor EEX D ll T4
Remote control station for ex-proof motor
Stainless steel mobile jacketed  tank
Customizable shaft length as per tank depth
Interchangeable impellers e.g. dissolver blade
Safety features
Panel control with frequency inverter
Mobile motorized electrical lifting system



WHY BATCH HIGH SHEAR MIXER?

Multimix Batch High Shear Mixer Series is specially designed for mixing application of oil and water phases in order to produce a homogenous emulsion without separation. It is also widely used for a faster and more efficient dispersion especially when gum such as Carbopol needs to be incorporated without agglomeration problem due to “fish eye”.

Its impellers are interchangeable meaning different batches and formulations in form of separate mixing vessels can be produced with different mixing impellers/techniques/requirements, all using ONE MIXER UNIT.

For example:

  • Batch A (gum dispersion with green colour) – high speed disperser blade
  • Batch B (thick emulsion in red colour) – rotor/stator double vortex
  • Batch C (medium emulsion in yellow colour) – rotor/stator single vortex



HOW IT WORKS?

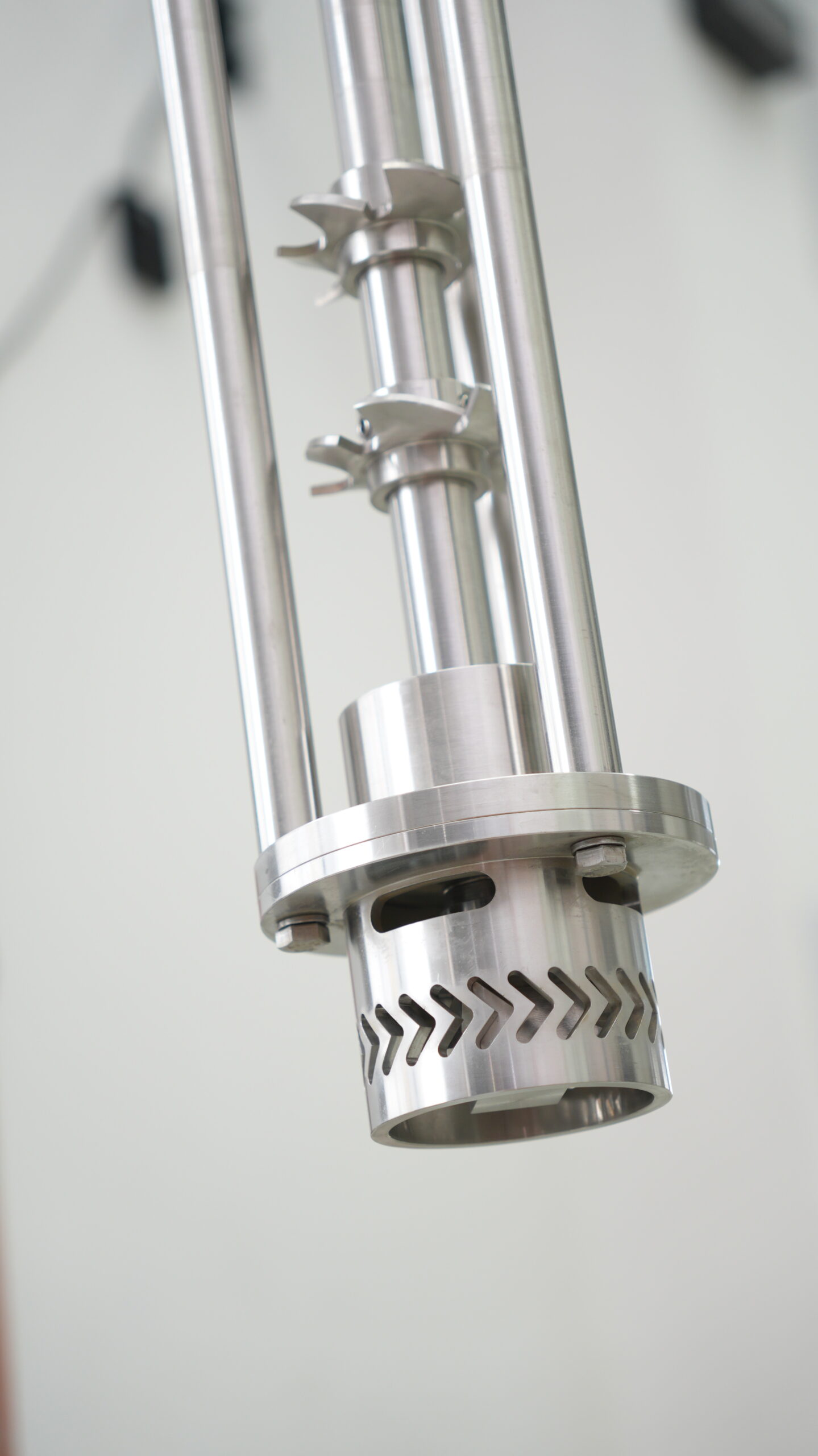

At the core of each Batch High Shear Mixer unit lies the precision engineered rotor & stator with either single or double vortex design which is key in high shear mixing for efficient emulsifying or homogenizing processes.

As the rotor turns at a high speed within the stationary stator, materials are drawn from above and below. Particles are then sheared through the precision-engineered clearance between the ends of the rotor blades and inner wall of stator, producing very fine droplets which are important in keeping an emulsion stable.

For dispersion process, simply replace the rotor with a disperser blade.



BATCH HIGH SHEAR MIXING APPLICATIONS

  • Cream
  • Lotions
  • Gel
  • Carbopol/Carbomer dispersion
