High Speed Disperser 130

High Speed Disperser (HSD)

Multimix High Speed Disperser are specially designed for applications requiring well dispersed and homogenous product output. e.g. when powder needs to be well incorporated in the liquids.

Multimix High Speed Disperser Brochure

KEY BENEFITS:

  • Fine dispersion without “fish eye” and agglomerates problem.
  • Lifting system via hydraulic mechanism (if applicable)
  • Reduction of investment costs.
  • High usability with panel control (if applicable)

Multimix High Speed Disperser/Dissolver – Product Video




Product Portfolio

Model Power (hp)/rpm Impeller dia (mm) Capacity (H2O/liter)
HSD 110 10/1500 200 200
HSD 120 20/1500 250 500
HSD 130 30/1500 300 1000
HSD 140 40/1500 350 1500
HSD 150 50/1500 500 2000
HSD 160 60/1500 550 3000
HSD 175 75/1500 600 5000



Product Specifications

Drive Three phase, 380V/415V, 50/60Hz
Digital Inverter Sensor less Vector Control
Speed Electronic variable speed inverter
Material SS 304L wetted parts

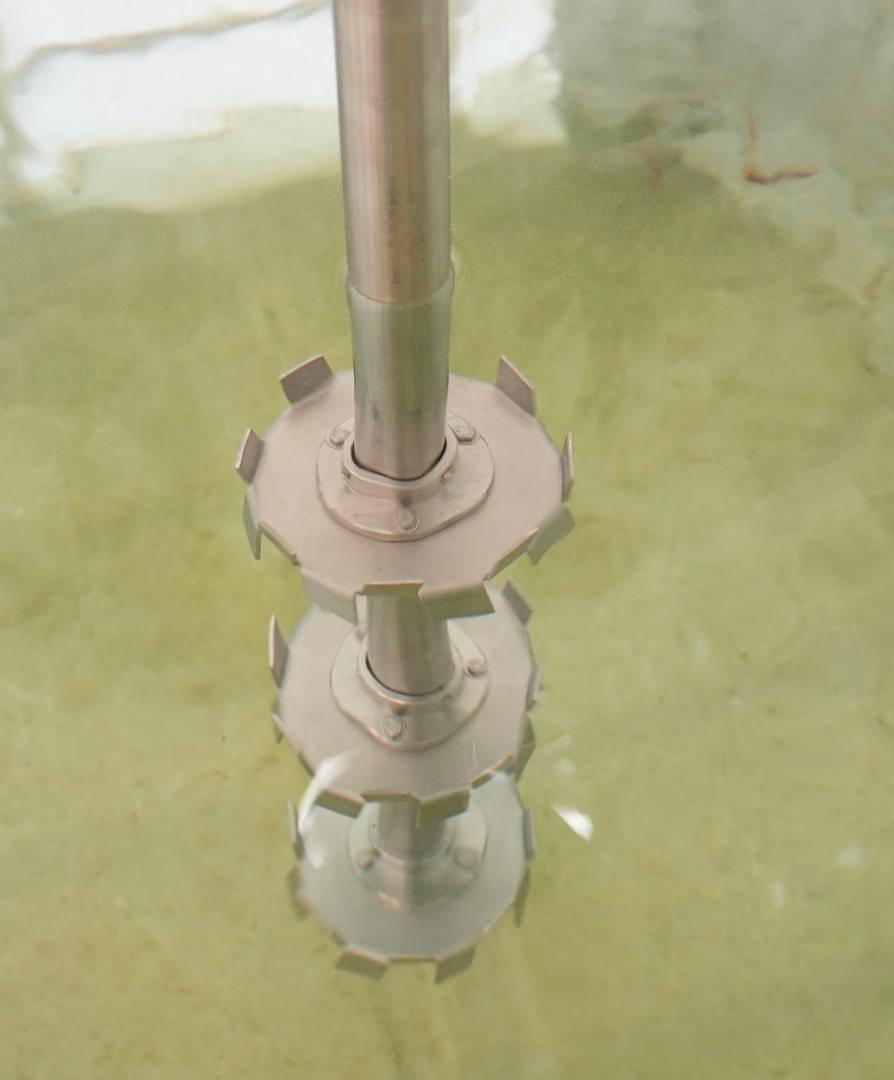

Impeller Dissolver type



Optional

Explosion proof motor EEX D ll T4
Remote control stationfor ex-proof motor
Safety limit switch
Safety guide and cover
Stainless steel mobile jacketed tank
Pneumatic air lifting
Platform type HSD
Lifting 0-1800mm
Drum clamp
